Bonita BPM is an open-source business process management and workflow suite created in 2001. Bonita can be applied for various projects requiring complex workflows like Supply Chain Management, e-Government, Human Resources, Contract management, etc. Bonita-OpenKM connectors feature, allow Bonita BPM to use OpenKM to save and retrieve documents.

Available versions

Version OpenKM Compatibility Bonita BPM Compatibility
Bonita-OpenKM-Connectors-2.0.zip 6.4.x Professional 6.x
Bonita-OpenKM-Connectors-1.0.zip 6.2.x Professional & 6.3.x community 6.x


Samples

Can test the connector with some samples available at Bonita-OpenKM-Connectors-Samples-1.0.zip.

  • openkm-diagram-cancelCheckoutDocument-1.0.bos
  • openkm-diagram-checkinDocument-1.0.bos
  • openkm-diagram-checkoutDocument-1.0.bos
  • openkm-diagram-createFolder-1.0.bos
  • openkm-diagram-deleteDocument-1.0.bos
  • openkm-diagram-deleteFolder-1.0.bos
  • openkm-diagram-downloadDocument-1.0.bos
  • openkm-diagram-downloadDocumentByVersion-1.0.bos
  • openkm-diagram-uploadDocument-1.0.bos


Source code

Source code available at github bonita-connector-openkm


How to configure OpenKM Connectors

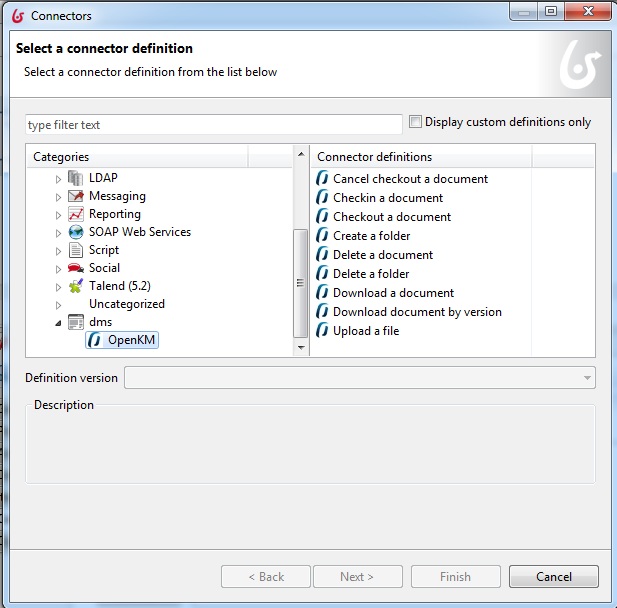

Go to OpenKM in the connectors list. Select a connector. Click on Next.


Upload a document

Inputs.

Enter the following input parameters to upload a document.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
File to upload Document attachment String
Destination path Path in OpenKM String

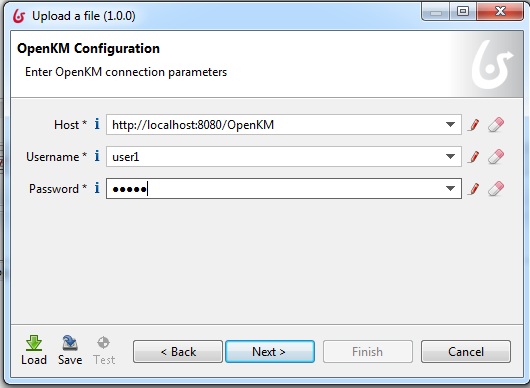

Configure the server information and click on next.

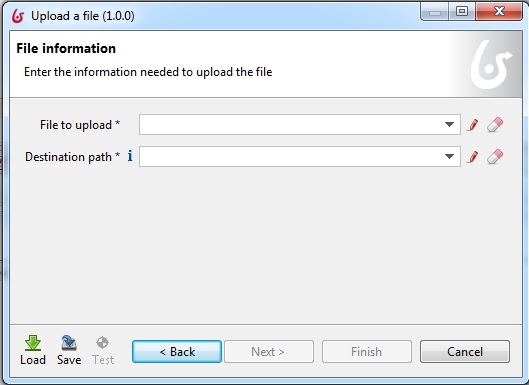

Configure the document information and click on next.



Outputs.

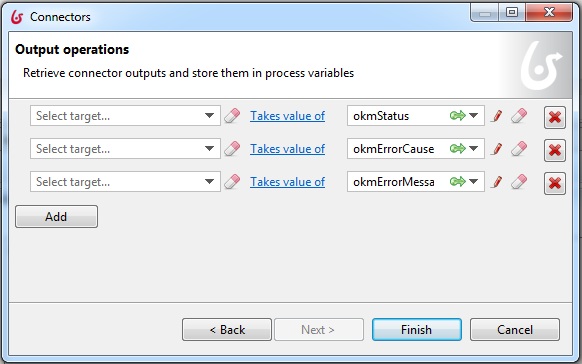

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Download document

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Document to download Document path in OpenKM String
Destination path Output path String

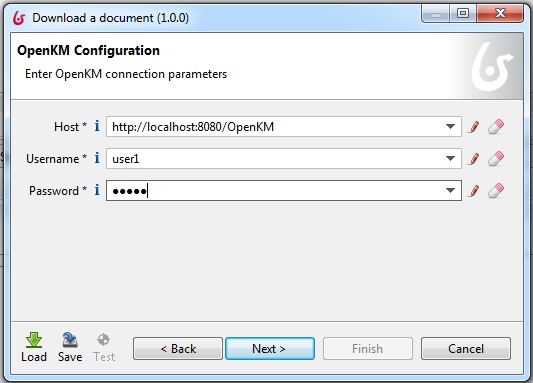

Configure the server information and click on Next.

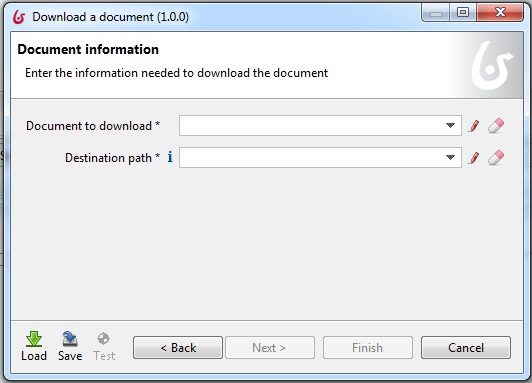

Configure the document information and click on Next.



Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Download document by version

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Document to download Document path in OpenKM String
Version of document Version of document String
Destination path Output path String

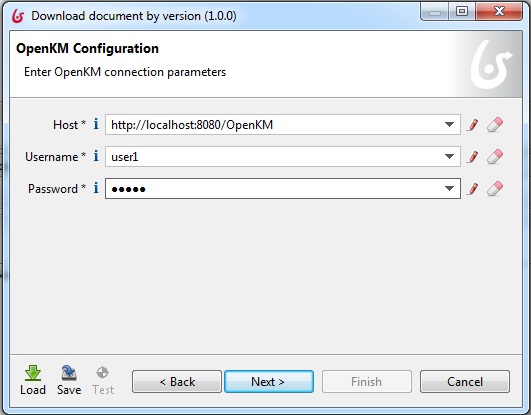

Configure the server information and click on Next.

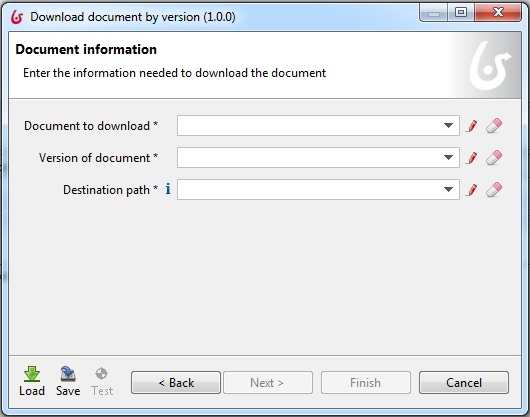

Configure the document information and click on Next.


Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Delete a document

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Document to delete Document path in OpenKM String

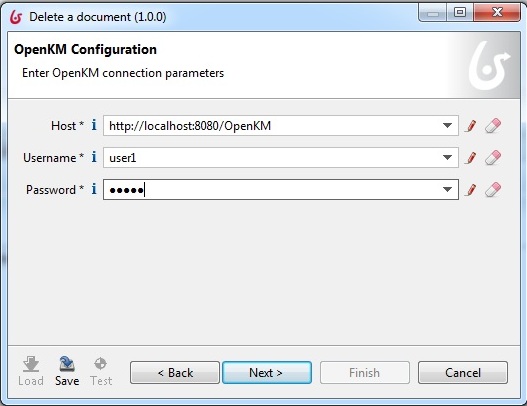

Configure the server information and click on Next.


Configure the document information and click on Next.



Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Checkout document

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Document to checkout Document path in OpenKM String

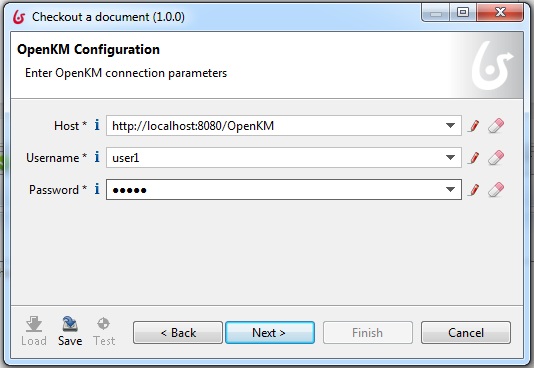

Configure the server information and click on Next.

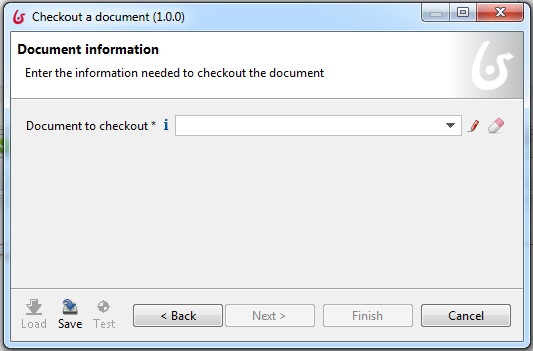

Configure the document information and click on Next.



Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Cancel checkout document

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Document to cancel checkout Document path in OpenKM String

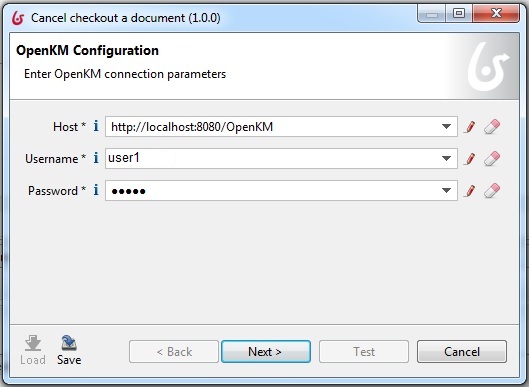

Configure the server information and click on Next.

Cancel check out-OpenKm Configuration.jpg


Configure the document information and click on Next.

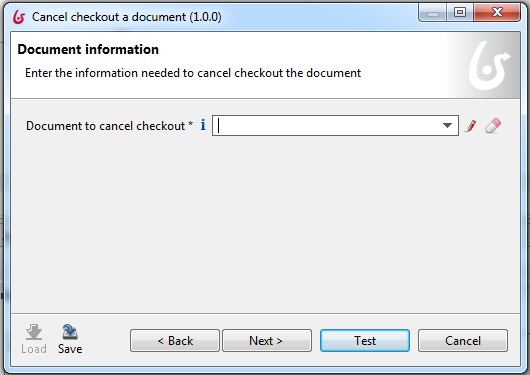

Cancel checkout-DocumentInformation.jpg


Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Checkin a document

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
File to upload Document attachment String
Destination path Document path in OpenKM String
Comment Comment String

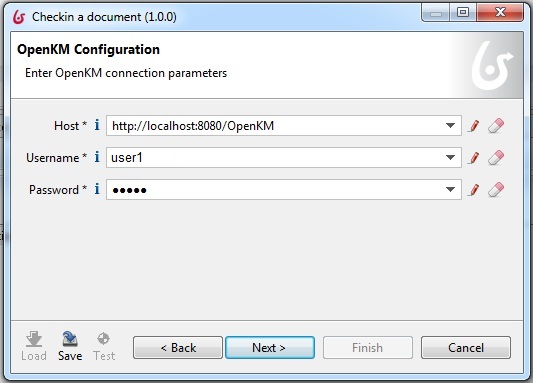

Configure the server information and click on Next.

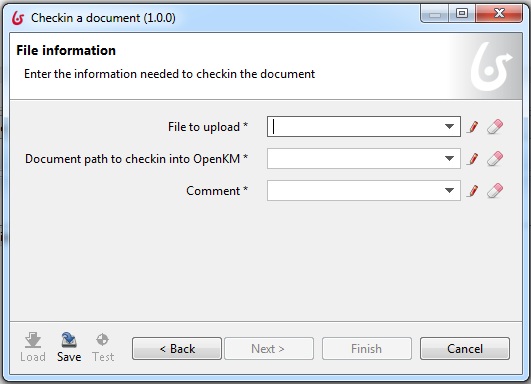

Configure the document information and click on Next.



Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Create folder

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Destination path Destination path in OpenKM String
Folder to create Folder name String

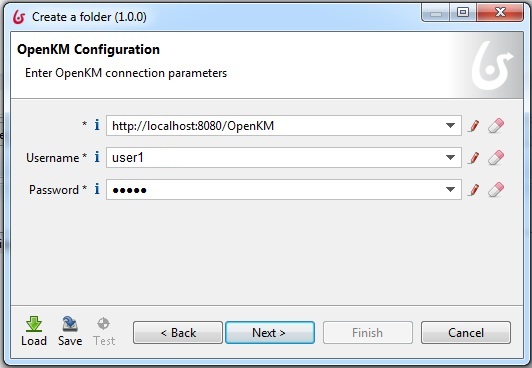

Configure the server information and click on Next.

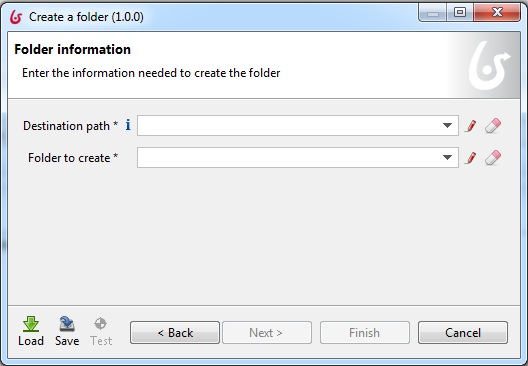

Configure the folder information and click on Next.



Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg

Delete folder

Inputs.

Enter the following input parameters.

Input Description Type
Host IP address or name of OpenKM directory host server String
Username OpenKM user name String
Password OpenKM password String
Folder to delete Folder path in OpenKM String

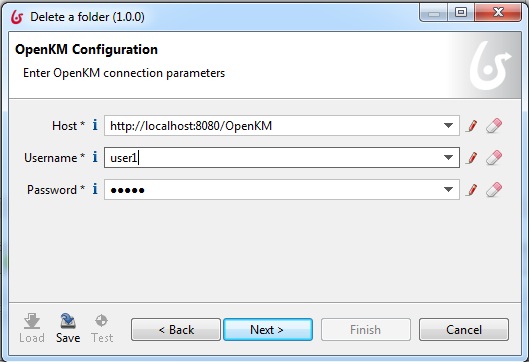

Configure the server information and click on Next.

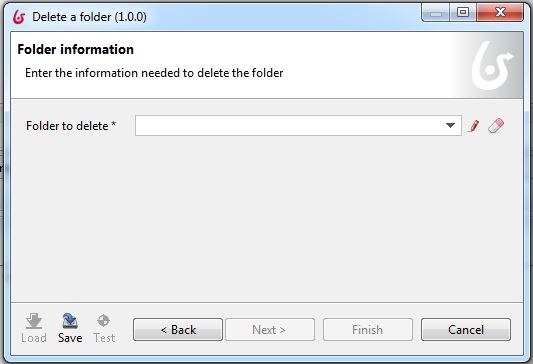

Configure the folder information and click on Next.


Outputs.

Map the output of this connector to a variable in the process. Click on Finish.

Output Description Type
okmStatus Response status Bool
okmErrorCause Response error cause String
okmErrorMessage Response error message String


OutPut operations.jpg
